AichromBond XB-1
AichromBond XB-1 columns are made from the spherical silica particles, which are the highest purity particles in the market. They have the maximum hydrophobicity and high pH tolerance. The maximum bonding density allows for the least interaction between the analytes and the silanol groups. This makes AichromBond XB-1 columns have extraordinary column stability. Abel provides both normal and reverse columns to meet a variety of application requirements, including NH2, CN, Silica, C18, C8, Phenyl.
The characteristics include:

-Extremely inertness at any pH for any compounds

-High stability at high pH (up to 10)

-Good shape selectivity

- High volume and mass loadability.

The highly restrict QA tests ensure the batch-to-batch reproducibility of the remarkable performance.

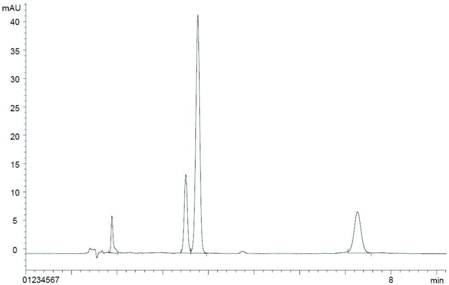

Figure 1 A typical QA test chromatogram of an AichromBond XB-1 C18 column

Sample: 1. Uracil, 2. 2,3 dihydroxy naphthalene, 3. Propanolol, 4. Naphthalene, 5. Amitriptyline
Injection: 5 μL
Column: 4.6 mm x 150 mm, 5 μm
Mobile phase: 10 mmol sodium phosphate buffer (pH=7)/Methanol = 15:85
Flow: 1 mL/min
Temperature:  30
Detection: UV 254 nm

Order Information

Dimension(mm)

Particle Size(μm)

Part Number

XB-1 C18

XB-1 C8

XB-1 Phenyl

2.1×30

5

185XB2031

105XB2031

115XB2031

2.1×50

5

185XB2051

105XB2051

115XB2051

2.1×100

5

185XB2101

105XB2101

115XB2101

2.1×150

5

185XB2151

105XB2151

115XB2151

4.6×50

5

185XB4051

105XB4051

115XB4051

4.6×100

5

185XB4101

105XB4101

115XB4101

4.6×150

5

185XB4151

105XB4151

115XB4151

4.6×200

5

185XB4201

105XB4201

115XB4201

4.6×250

5

185XB4251

105XB4251

115XB4251

2.1×30

3

183XB2031

103XB2031

113XB2031

2.1×50

3

183XB2051

103XB2051

113XB2051

2.1×100

3

183XB2101

103XB2101

113XB2101

2.1×150

3

183XB2151

103XB2151

113XB2151

4.6×50

3

183XB4051

103XB4051

113XB4051

4.6×100

3

183XB4101

103XB4101

113XB4101

4.6×150

3

183XB4151

103XB4151

113XB4151



Dimension(mm)

Particle Size(μm)

Part Number

XB-1 CN

XB-1Silica

XB-1 NH2

2.1×30

5

CN5XB2031

SI5XB2031

NH5XB2031

2.1×50

5

CN5XB2051

SI5XB2051

NH5XB2051

2.1×100

5

CN5XB2101

SI5XB2101

NH5XB2101

2.1×150

5

CN5XB2151

SI5XB2151

NH5XB2151

4.6×50

5

CN5XB4051

SI5XB4051

NH5XB4051

4.6×100

5

CN5XB4101

SI5XB4101

NH5XB4101

4.6×150

5

CN5XB4151

SI5XB4151

NH5XB4151

4.6×200

5

CN5XB4201

SI5XB4201

NH5XB4201

4.6×250

5

CN5XB4251

SI5XB4251

NH5XB4251

2.1×30

3

CN3XB2031

SI3XB2031

NH3XB2031

2.1×50

3

CN3XB2051

SI3XB2051

NH3XB2051

2.1×100

3

CN3XB2101

SI3XB2101

NH3XB2101

2.1×150

3

CN3XB2151

SI3XB2151

NH3XB2151

4.6×50

3

CN3XB4051

SI3XB4051

NH3XB4051

4.6×100

3

CN3XB4101

SI3XB4101

NH3XB4101

4.6×150

3

CN3XB4151

SI3XB4151

NH3XB4151


AichromBond XB-2
AichromBond XB-2 has an identical bonded phase as XB-1. However, XB-2 has relatively low surface area, 200O /g, which allows compounds to have shorter retention times and suitable for the separation of large molecules. Abel supplies XB-2 C18, XB-2 C8 and XB-2Silica. These are equivalent to Hypersil BDS and Zorbax XDB. Hypersil BDS and Zorbax XDB relatively could have more retention.

Dimension(mm)

Particle Size(μm)

Part Number

XB-2 C18

XB-2 C8

XB-2 Silica

2.1×30
2.1×50
2.1×100
2.1×150
4.6×50
4.6×100
4.6×150
4.6×200
4.6×250

5
5
5
5
5
5
5
5
5

185XB2032 185XB2052 185XB2102 185XB2152 185XB4052 185XB4102 185XB4152 185XB4202 185XB4252

105XB2032 105XB2052 105XB2102 105XB2152 105XB4052 105XB4102 105XB4152 105XB4202 105XB4252

SI5XB2032
SI5XB2052
SI5XB2102
SI5XB2152
SI5XB4052
SI5XB4102
SI5XB4152
SI5XB4202
SI5XB4252


AichromBond XB Series Columns

AichromBond XB-1
The AichromBond AQ C18 columns are designed to show extended retention and selectivity for hydrophilic and polar compounds at low to medium pH(1.5-9.0), which are poorly retained on other phases. AichromBond AQ C18 columns are made to be compatible with 100% aqueous mobile phases. AichromBond AQ C18 columns are suitable for analysing biomolecules, metabolites, and pharmaceutical degradants such as organic acids, watersoluble vitamins, oligosaccharides, amino acids, small peptides and nucleotides. AichromBond AQ C18 columns are equivalent to Waters Symmetry, Inertsil C18, Zorbax SB, Atlantis dC18, and other AQ columns.
The proprietary bonding process of the packing materials led to unique performance of the AQ C18 columns.
The characteristics include:
1) Extremely base-friendly surface at any pH
2) Large volume injection: maintains very high efficiency even if the injection volume  is exceptionally large.
3) Compatibility with 100% aqueous mobile phase high volume and mass loadability.
4) Low pH stability (pH=1.5): better stability than most of the popular brand columns (including other brand AQ columns) on the market.

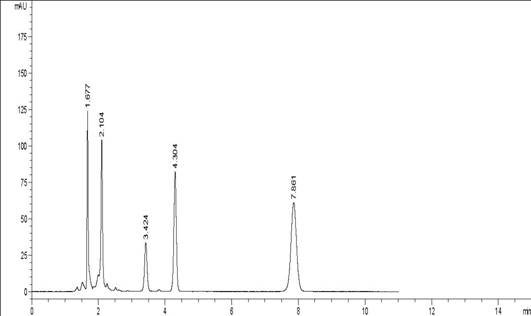

Figure 1A typical QA test chromatogram of an AQ C18 column

Sample:1. Uracil, 2. 2,3 dihydroxy naphthalene, 3. Propanolol, 4. Naphthalene, 5. Amitriptyline
Injection: 5 μL
Column: 4.6 mm x 150 mm, 5 μm
Mobile phase: 10 mmol sodium phosphate buffer (pH=7)/Methanol = 15:85
Flow: 1 mL/min
Temperature:  30
Detection: UV 254 nm


Balanced Retention for Hydrophilic and Hydrophobic Compounds
Mobile Phase: 35% v/v 20.0mM KH2PO4 / K2HPO4 at pH=7.0 / 65% Methanol at 23

Flow Rate:

1mL/min

Detection:

UV 254nm

Sample:

Uracil, Propranolol, Hydrochloride, Dimethyl Phthalate,



Naphthalene, Acenaphthene, Amitriptyline

Dimension(mm)

Particle Size(μm)

Part Number

AichromBond AQ C18

2.1×30

5

185AQ203

2.1×50

5

185AQ205

2.1×100

5

185AQ210

2.1×150

5

185AQ215

4.6×50

5

185AQ405

4.6×100

5

185AQ410

4.6×150

5

185AQ415

4.6×250

5

185AQ425

2.1×30

3

183AQ203

2.1×50

3

183AQ205

2.1×100

3

183AQ210

2.1×150

3

183AQ215

4.6×50

3

183AQ405

4.6×100

3

183AQ410

4.6×150

3

183AQ415


AichromBond SB Series Columns
The AichromBond SB series columns use unique monofunctional silanes with bulky diisobutyl or diisopropyl side chain groups that sterically protect the key siloxane bond from hydrolytic attack at low pH. The AichromBond SB columns are specially designed for the separation of polar compounds from low (extremely stable at pH=1.0) to medium pH. The packing materials are not endcapped. AichromBond SB columns are equivalent to Zorbax SB.
The characteristics include:
  1.  Peak shape and efficiency: Excellent peak symmetry for basic compounds comparing to other brand polar phase columns
  2.  100% aqueous compatible: Much better peak shape, retention, and efficiency
  3.  Balanced retention with high efficiency and resolution
  4.  Low pH application: as low as 1.0
The Stability in the Low pH

Column: AichromBond SB C18 4.6×150mm, 5μm
Sample: Naphthol
Aging: 40, TFA in 80% methanol (pH=1.0), 400 hours
Mobile Phase: TFA in 80% methanol (pH=1.5)
Flow Rate: 1mL/min
Injection: 5μL
Temperature:  30


The Separation of Organic Acid

Dimension(mm)

Particle Size(μm)

Part Number

SB C18

SB C8

2.1×30

3

183SB203

103SB203

2.1×50

3

183SB205

103SB205

2.1×100

3

183SB210

103SB210

2.1×150

3

183SB215

103SB215

4.6×50

3

183SB405

103SB405

4.6×100

3

183SB410

103SB410

4.6×150

3

183SB415

103SB415

2.1×30

5

185SB203

105SB203

2.1×50

5

185SB205

105SB205

2.1×100

5

185SB210

105SB210

2.1×150

5

185SB215

105SB215

4.6×50

5

185SB405

105SB405

4.6×100

5

185SB410

105SB410

4.6×150

5

185SB415

105SB415

4.6×250

5

185SB425

105SB425


AichromBond SB Series Columns
AichromBond HILIC columns are made from high purity spherical silica particles bonded with a neutral hydrophilic amide group. The AichromBond HILIC columns are a good replacement for NH2 and silica columns that are currently marketed as HILIC. Compared with traditional silica and NH2 columns, the AichromBond HILIC columns have better reproducibility and column lifetime. They are especially useful for the separation of strong hydrophilic compounds, whether they are acidic, basic or neutral.

The characteristics include:
  1.  Strong retention of polar compounds in HILIC mode
  2.  Can be used as reversed phase, normal phase and HILIC phase
  3.  More robust and reproducible performance than silica and amino stationary phase
  4.  100% aqueous and 100% organic solvents compatible
  5.  pH range: 2.1-8.0
Application

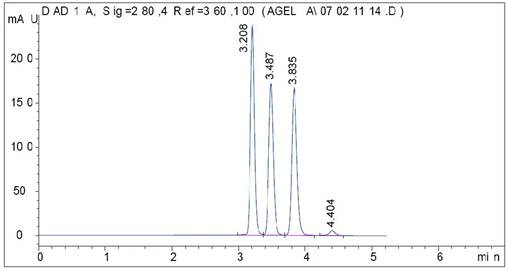

Water-soluble Vitamins
AichromBond HILIC 5μm, 4.6mm×150mm

Brand W Silica Column, 5μm, 4.6×150mm

Mobile Phase: A:0.1% TFA in Water; B:0.1% TFA in AcetonitrileA:B=90:10
Flow Rate: 1mL/min
Temperature:  30
Detection: UV 280nm
Sample: VB1+VB6+VC+VB2

Order Information

Dimension(mm)

Particle Size(μm)

Part Number

AichromBond HILIC

2.1×30

3

3AH203

2.1×50

3

3AH205

2.1×100

3

3AH210

2.1×150

3

3AH215

4.6×50

3

3AH405

4.6×100

3

3AH410

4.6×150

3

3AH415

2.1×30

5

5AH203

2.1×50

5

5AH205

2.1×100

5

5AH210

2.1×150

5

5AH215

4.6×50

5

5AH405

4.6×100

5

5AH410

4.6×150

5

5AH415

4.6×250

5

5AH425


Aichrom Ion Exchange HPLC Columns
Aichrom ion exchange columns are available for both Strong Anion Exchange (SAX) and Strong Cation Exchange (SCX) columns. Aichrom SCX columns are made from spherical silica particles of the highest purity, bonded with aromatic sulfonic acid group. They can be used for the separation of basic, water-soluble compounds and bio-molecules. Aichrom SAX columns are made from high purity spherical silica particles and bonded with quaternary amine groups. The columns can be used for the separation of acidic, water-soluble compounds and bio-molecules.
Order Information

Dimension(mm)

Particle Size(μm)

Part Number

SCX

SAX

2.1×150

3

3SC215

3SA215

4.6×150

3

3SC415

3SA415

4.6×250

3

3SC425

3SA425

2.1×150

5

5SC215

5SA215

4.6×150

5

5SC415

5SA415

4.6×250

5

5SC425

5SA425

4.6×300

5

5SC430

5SA430

7.8×300

5

5SC730

5SA730


Aichrom PAH HPLC Columns

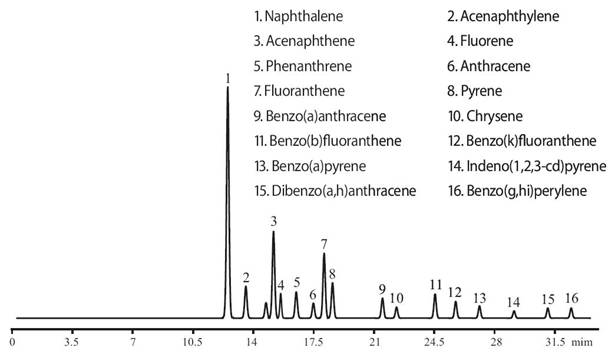

PAHs (Polycyclic Aromatic Hydrocarbon) are considered as priority pollutants. They are potentially carcinogenic compounds existing in water, air, soil and food. Analyzing PAHs has been paid more and more attention. Aichrom PAH columns are recommended for the separation of PAHs and steric isomers of the aromatic compounds. The Aichrom PAH columns separate all of the 16 PAHs in EPA method 610 quickly with high resolution and the best peak shapes.

Order Information

Dimension(mm)

Particle Size(μm)

Part Number

4.6×150

3

3PA415

4.6×250

3

3PA425

4.6×150

5

5PA415

4.6×250

5

5PA425
