Product Description


Designed for rapid filtration of particulate matter from HPLC solvents.This unit is excellent value.Protect your instrument and column from costly damage by clarifying all your HPLC solvents and buffer solutions before use.This vacuum filter assembly comes with a sample reservoir and receiving flask.A 47mm diameter membrance filter is placed between the fritted-glass support base and the sample reservior,secured in place by an aluminum clamp.The support base itself is connected to the receiving flask by a vacuum-tight ground-glass joint.Only tow-extractable borosilicate glass and the membrance filter come into contact with the mobile phase.The vacuum hose connection is made above the filtration drip tip to prevent contamination from the vacuum line.

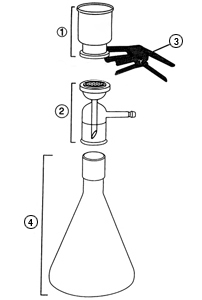

1. Funnel
2. Vacuum Base
3. Clamp
4. Ground Joint Flask



Application


Prevents pump and system component damage.
Rapid fltration of buffers, organics and corrosive liquids.
Removes damaging microparticulates and bacterial contaminants.
HPLC and GC solvent and sample fltration, 1 to 2L units.

Materials
E04-5021

Borosilicate glass funnel, base and tubulated cap;anodized aluminum spring clamp; fritted glass filter support

Filter Diameter(mm) 47
Filtration Area(cm2) 9.6
Funnel Capacity(mL) Funnel: 300mL; flask: 1L
Outlet Fitting 6mm (1/4 in.) O.D. tubulated cap sidearm to vacuum
Dimensions
Height/cm (in) 43
Diameter/cm (in) Flask: 14; funnel: 7.6



Ordering information

Cat No.
Description
Packing Size.
E04-5021
300mL/1L Filtration Apparatus
SET
E04-5022
500mL/2L Filtration Apparatus
SET
Oil Free Diaphragm Vacuum Pump

This Vacuum Pump is a versatile, powerful, user-friendly answer to most vacuum applications. It is the perfect pump for Filtration and Solid Phase Extraction tasks
Model
BF-S2500
Flow Rate
25 L / Min
Max. Vacuum
0.085 Mpa
Power Requirement
220v/50hz
Consumption Power
60 W
Dimensions (D x W x H)
280*140* 220mm
Weight
6.5kg
Cat No.
Description
Packing Size.
K17-0002
Oil Free Diaphragm Vacuum Pump
EA
